XpertJet 1341 WR Pro
XpertJet 1341 WR Pro
54” Dye-Sublimation Printer

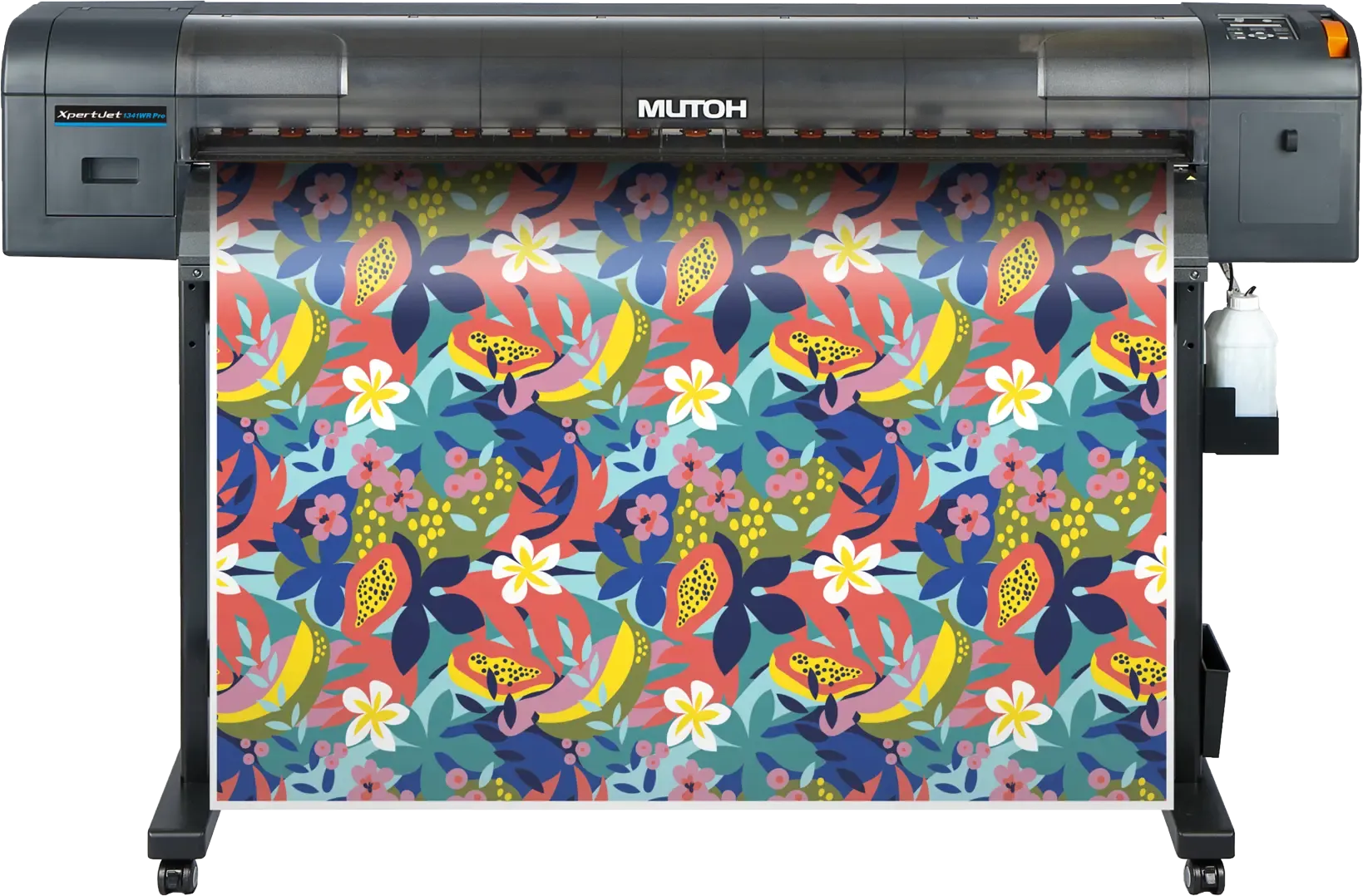

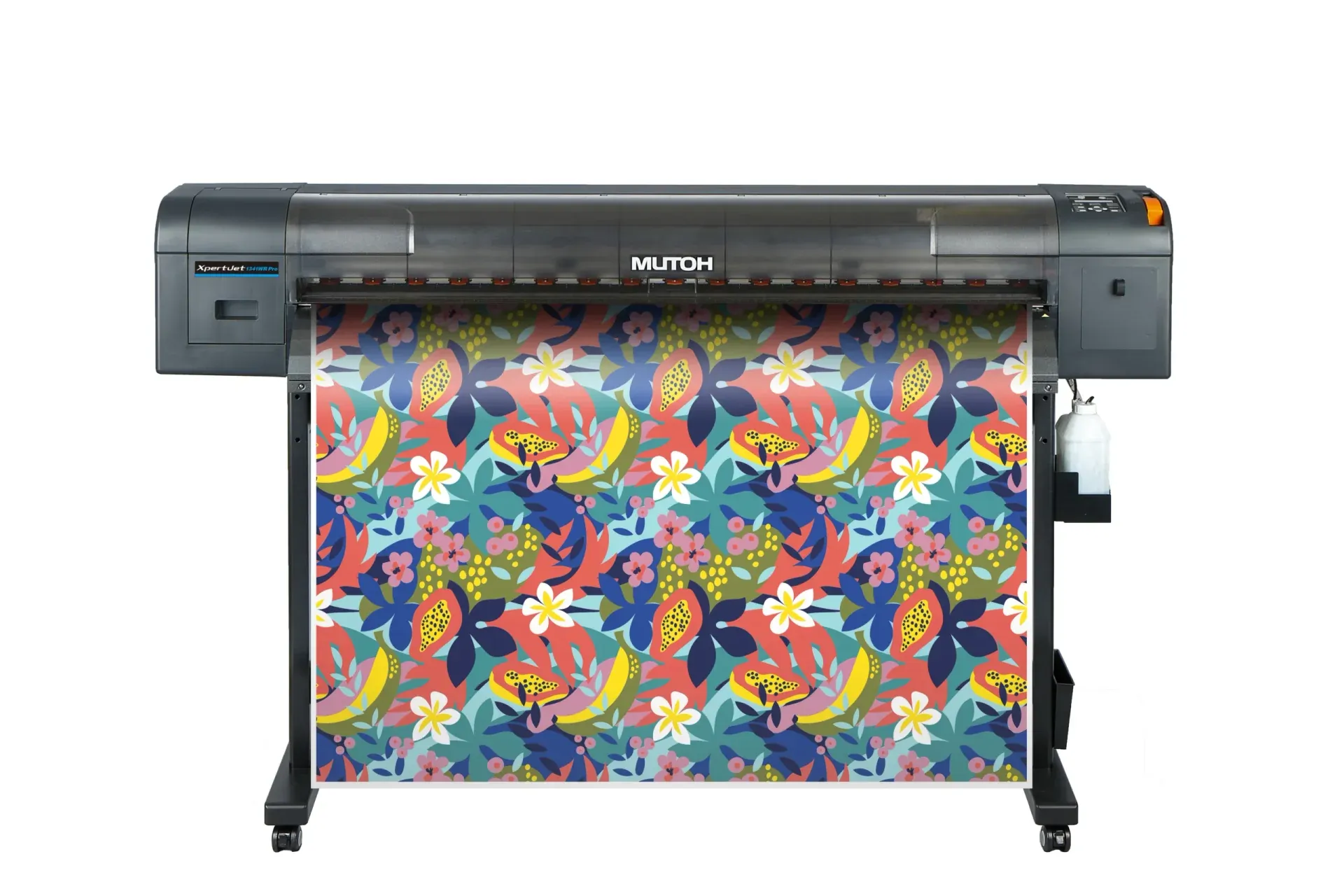

The XpertJet 1341WR Pro is a fast, compact 54" dye-sublimation printer built for high-density color output. It's ideal for apparel, sports uniforms, flags, banners, soft signage, and custom home décor.
Fill out the form below to request information about the XpertJet 1341 WR Pro.
Fields marked with an asterisk(*) are required.
Product Details

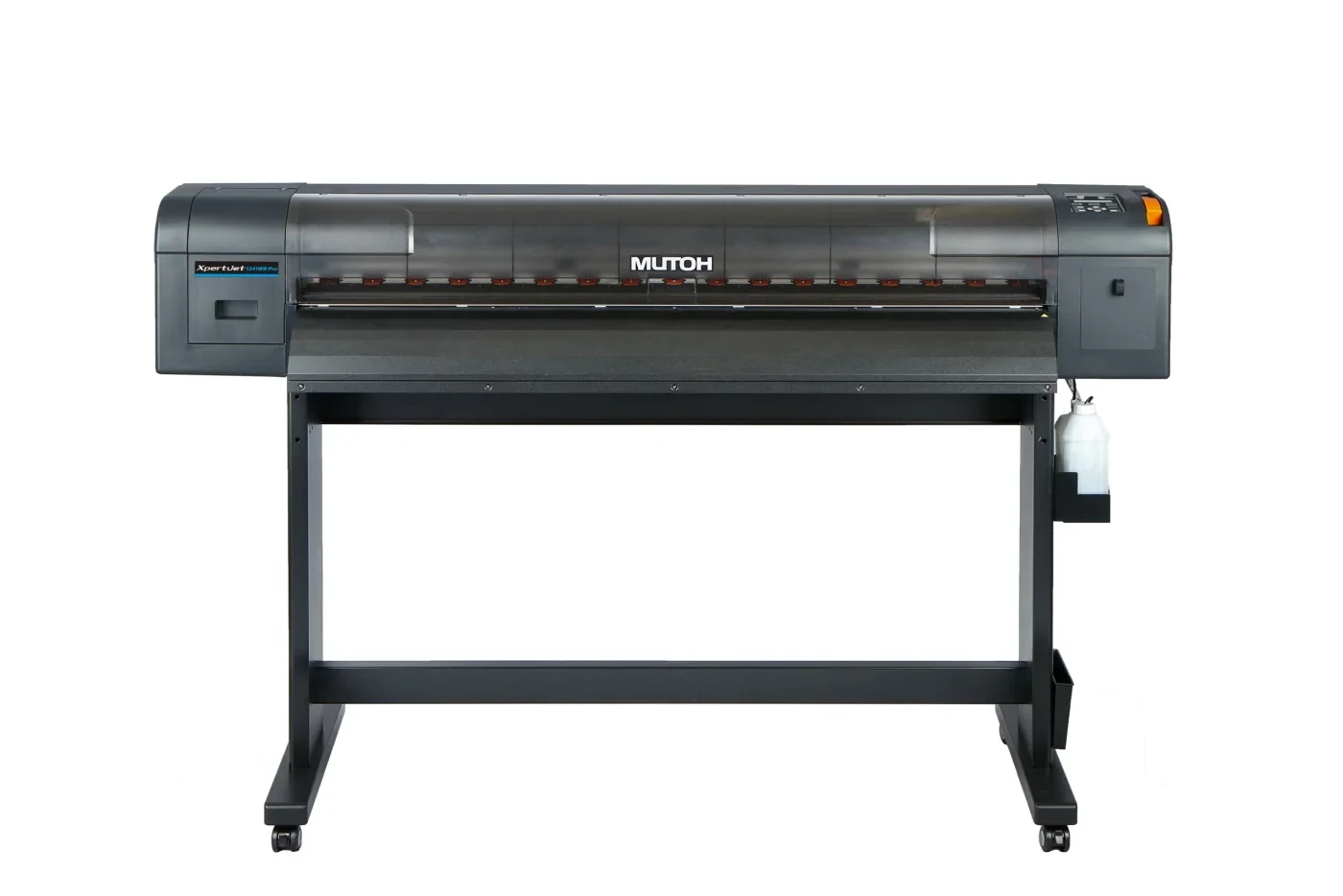

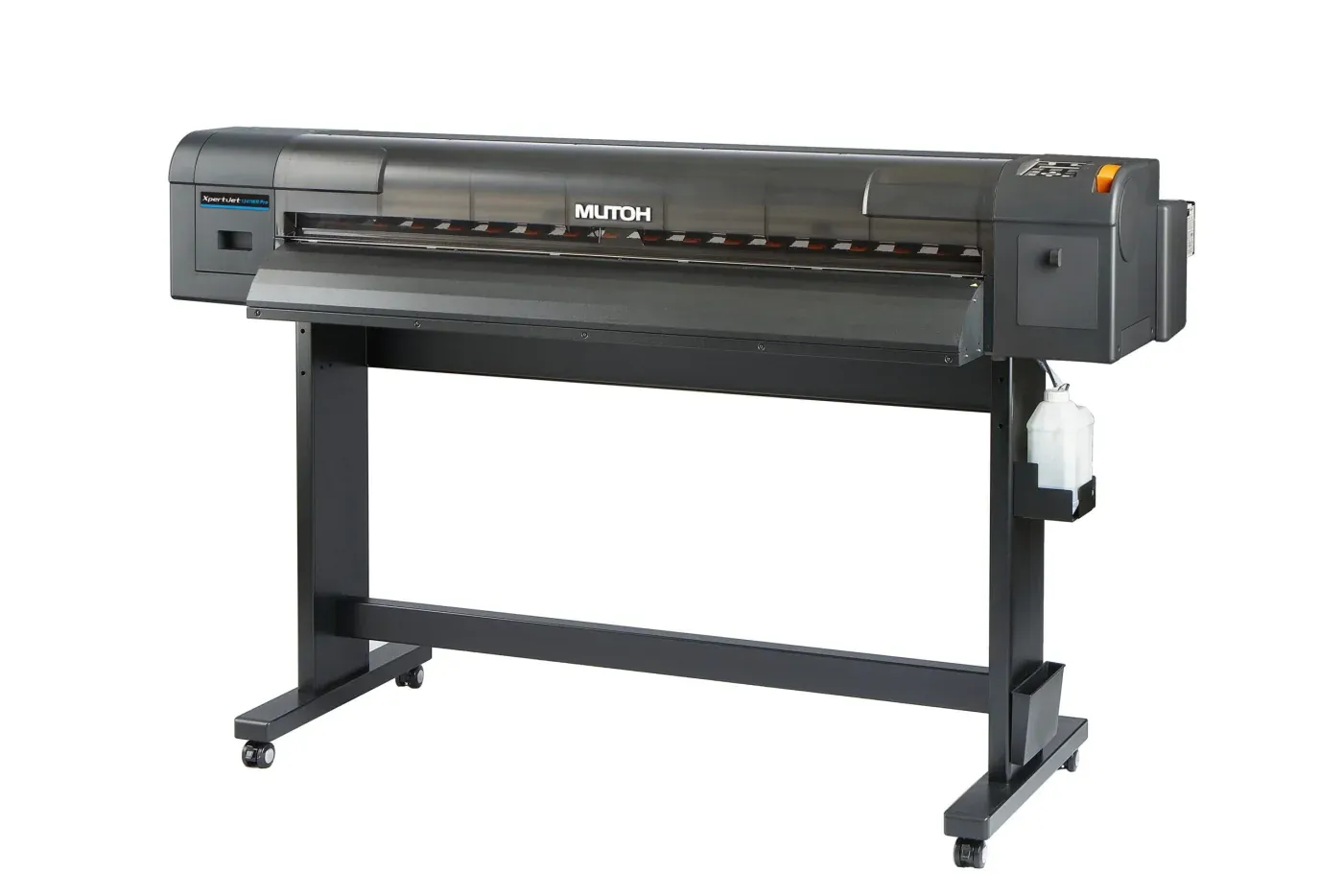

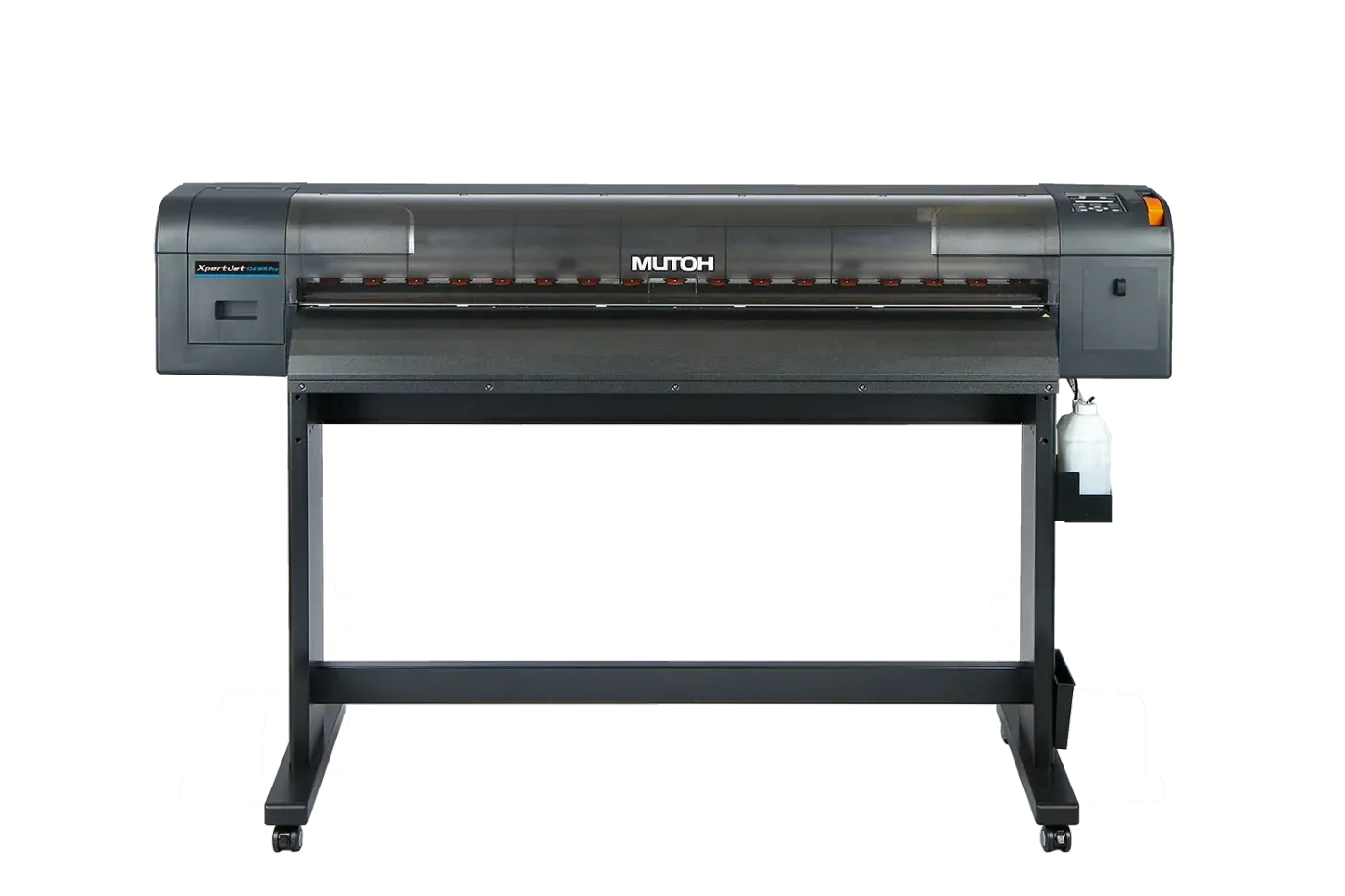

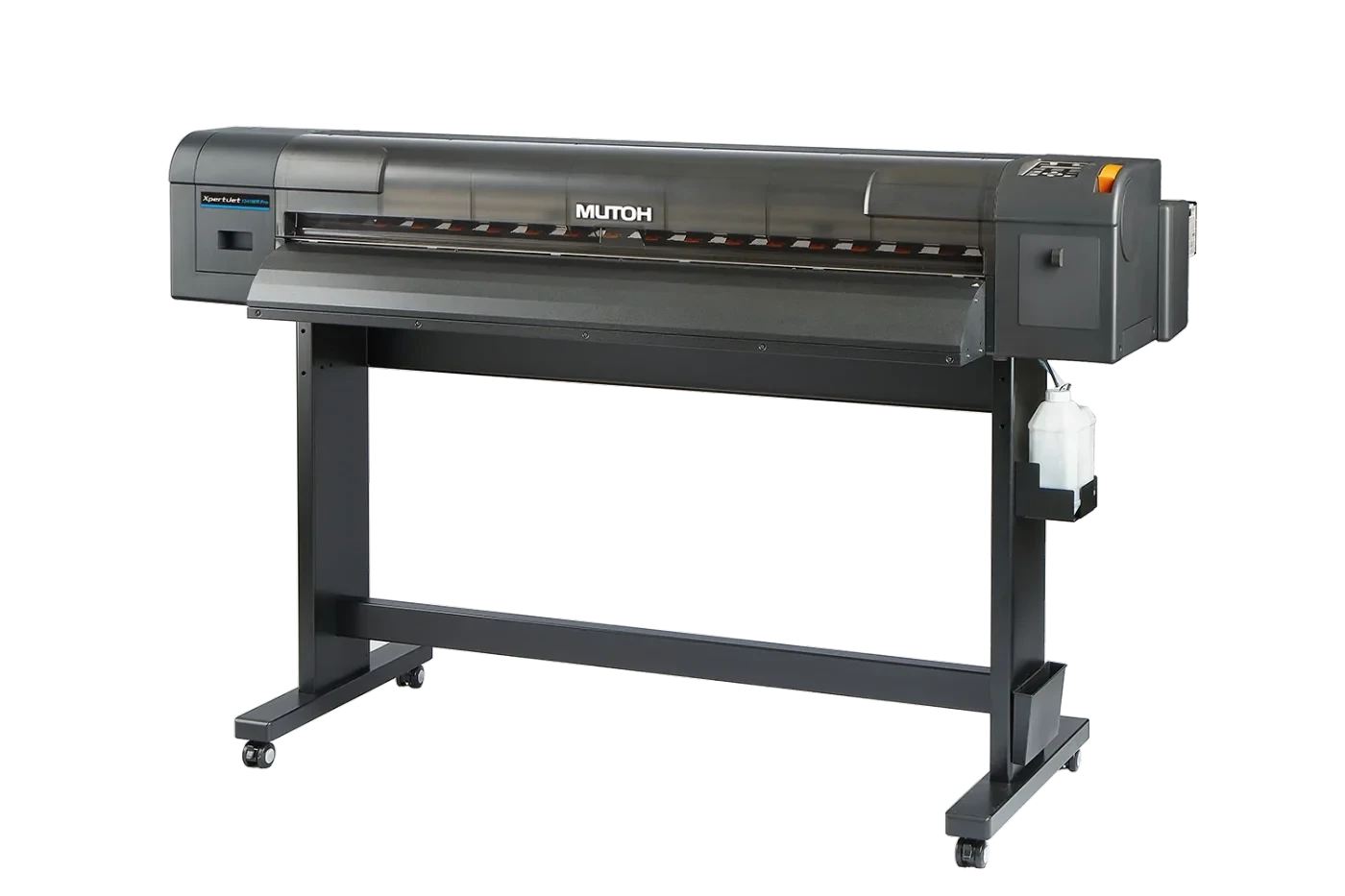

The MUTOH XpertJet 1341WR Pro is a 4-color (CMYK) high-speed dye-sublimation inkjet printer built on a refined platform that inherits the proven performance of the XpertJet series. Its AccuFine printhead delivers accurate dot placement accuracy paired with i-screen print effect technology for smooth, banding-free output.
Materials
DH21 dye-sublimation transfer ink helps achieve high-density colors even on thinner, lighter transfer papers. High performance jetting and color stability support prolonged print runs, with ink available in a CMYK configuration in 1,000ml high-capacity bags.
Features
- AccuFine printhead for accurate dot placement
- i-screen Intelligent Interweave technology helps prevent banding while printing
- Automatically calibrate bi-directional alignments
- Automatic media feed adjustments for accurate advancement
- Print a barcode before roll removal and read it upon reload to track remaining media
- Allows printing to continue using active nozzles if clogging occurs, minimizing downtime

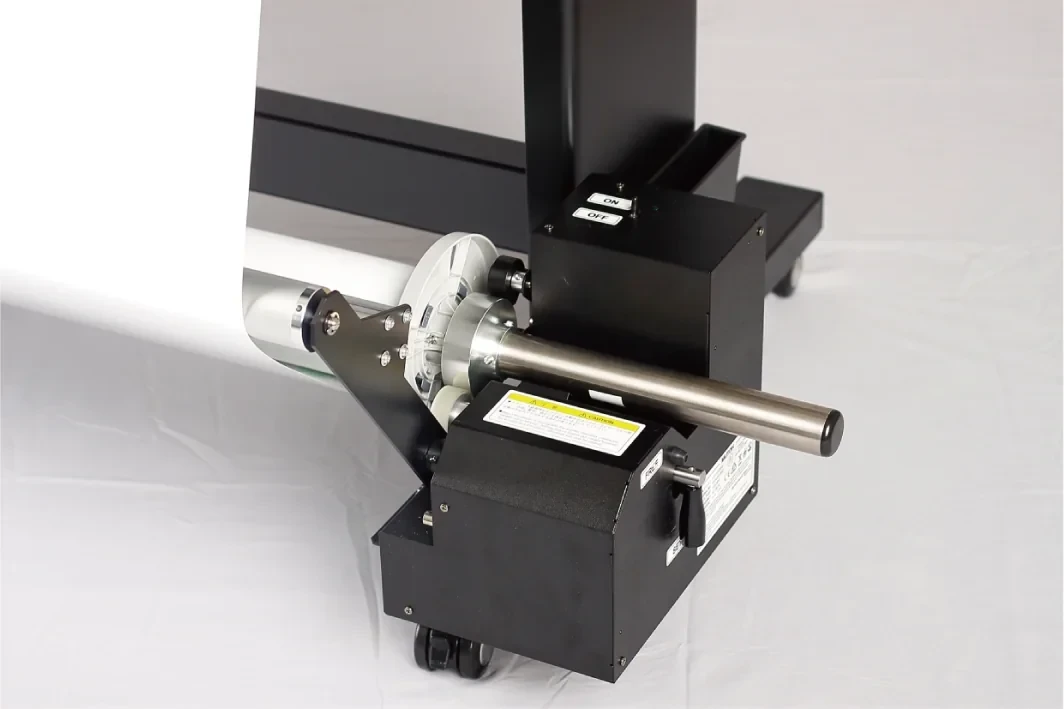

- Optional Add-on: 44lb take-up unit
Specs
| Specification | Detail |
|---|---|
| Print Method | On-demand piezo drive system |
| Printhead Height | Low: 1.5mm / Middle: 2.0mm / High: 2.5mm |
| Printhead Number | 1 (MUTOH AccuFine) |

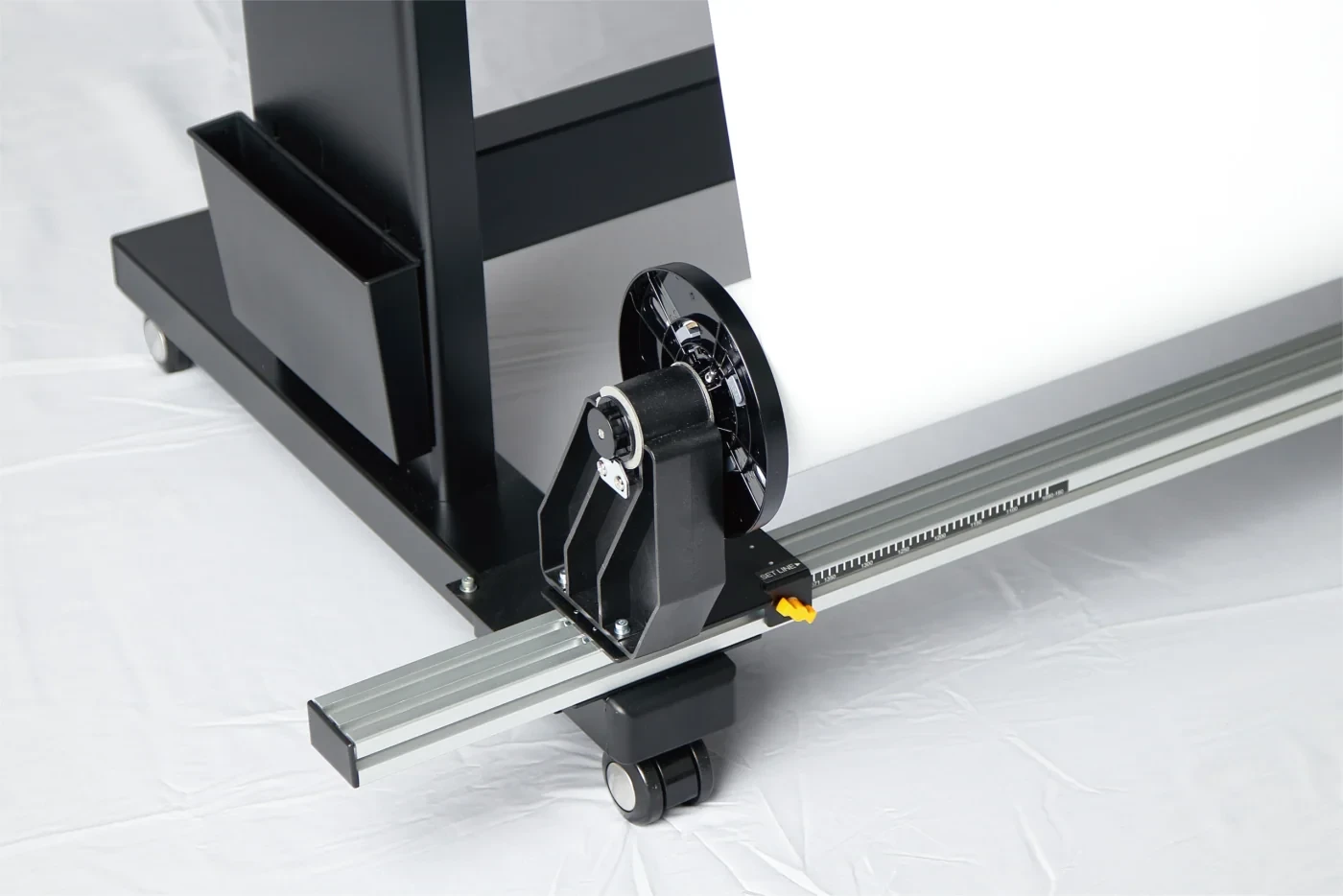

| Roll Media Width | Maximum: 53.97in (Minimum: 19.68in) |
| Media Thickness | 1.3mm or less |
| Roll Diameter | Φ5.9 in or less |
| Core Diameter | 2 in or 3 in cores |
| Max. Roll Weight | 41.8 lbs or less |
| Maximum Printable Width | 53.58 in |
| Ink Type | Dye-sublimation ink DH21 |
| Ink Color | 4 Color - CMYK |
| Ink Capacity | 1000ml ink bag (adapters required) |
| Print Resolution | 1200x1200dpi |
| Interface | Gigabit-Ethernet (1000BASE-T) - Recommend CAT6+ |
| Power Supply | AC100V-120V±10% (90V-132V) or 200V-240V±10% (180V-264V), Frequency: 50/60 Hz ± 1Hz |
| Environmental Conditions – Printer Operation | Temperature 68-89°F, Humidity 40%-60%RH (no condensation) |
| Environmental Conditions – Ideal Quality | Temperature 72-86°F, Humidity 40%-60%RH (no condensation) |
| Power Consumption | Operation: 190W or less, Sleep mode: 14W or less |
| External Dimensions | W 75.4 in x D 26.9 in x H 47.9 in (with cover closed) |
| Printer Weight | 178.5 lbs (Printer body: 134.4 lbs, Stand: 44 lbs) |
| RIP Software | 6-month trial to Wasatch SoftRIP |
Applications
The XPJ-1341WR Pro delivers high-quality graphics onto a wide range of materials such as apparel, sports uniforms, flags, banners, soft signage, custom home décor, and more.
-
Apparel
-
Home Decor
-
Soft Signage
-
Wall Coverings
