XpertJet 1642 WR Pro
XpertJet 1642 WR Pro
64” Dye-Sublimation Printer

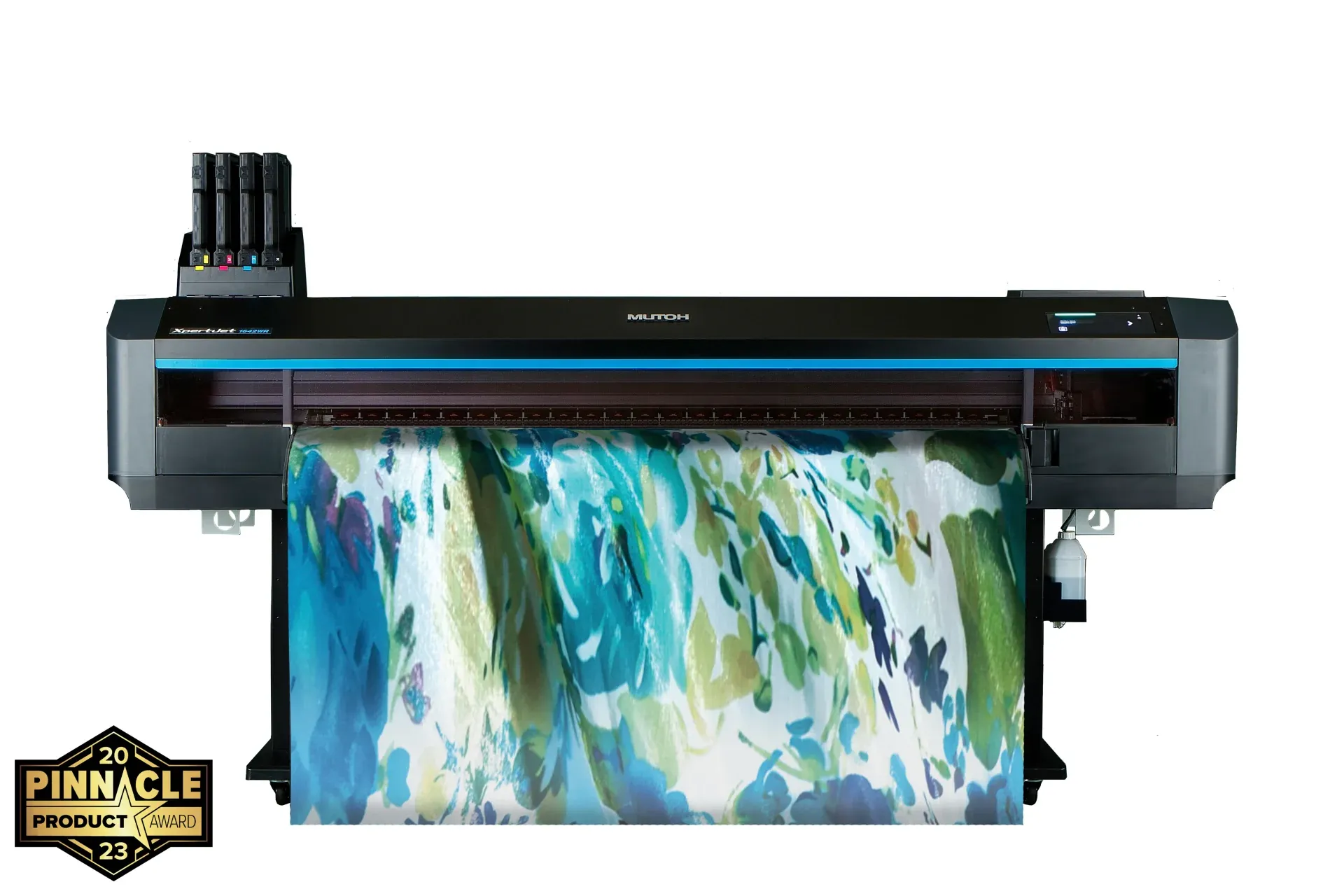

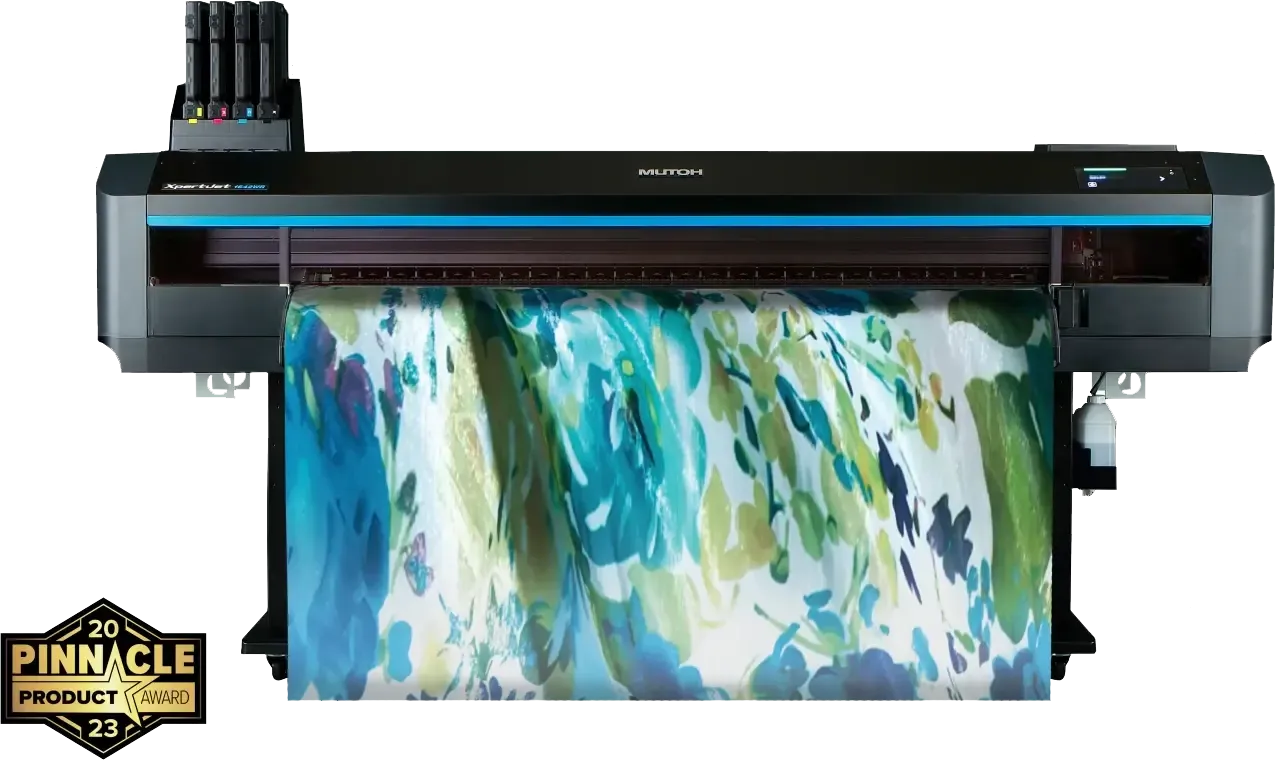

The MUTOH XpertJet 1642WR Pro is a 64” high-speed, 4-color (CMYK) dye-sublimation inkjet printer built in Japan for high-volume production and lasting reliability. It's ideal for producing trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms, and more.
Fill out the form below to request information about the XpertJet 1642 WR Pro.
Fields marked with an asterisk(*) are required.
Top 5 Items to Print with XpertJet 1642 WR Pro
Product Details

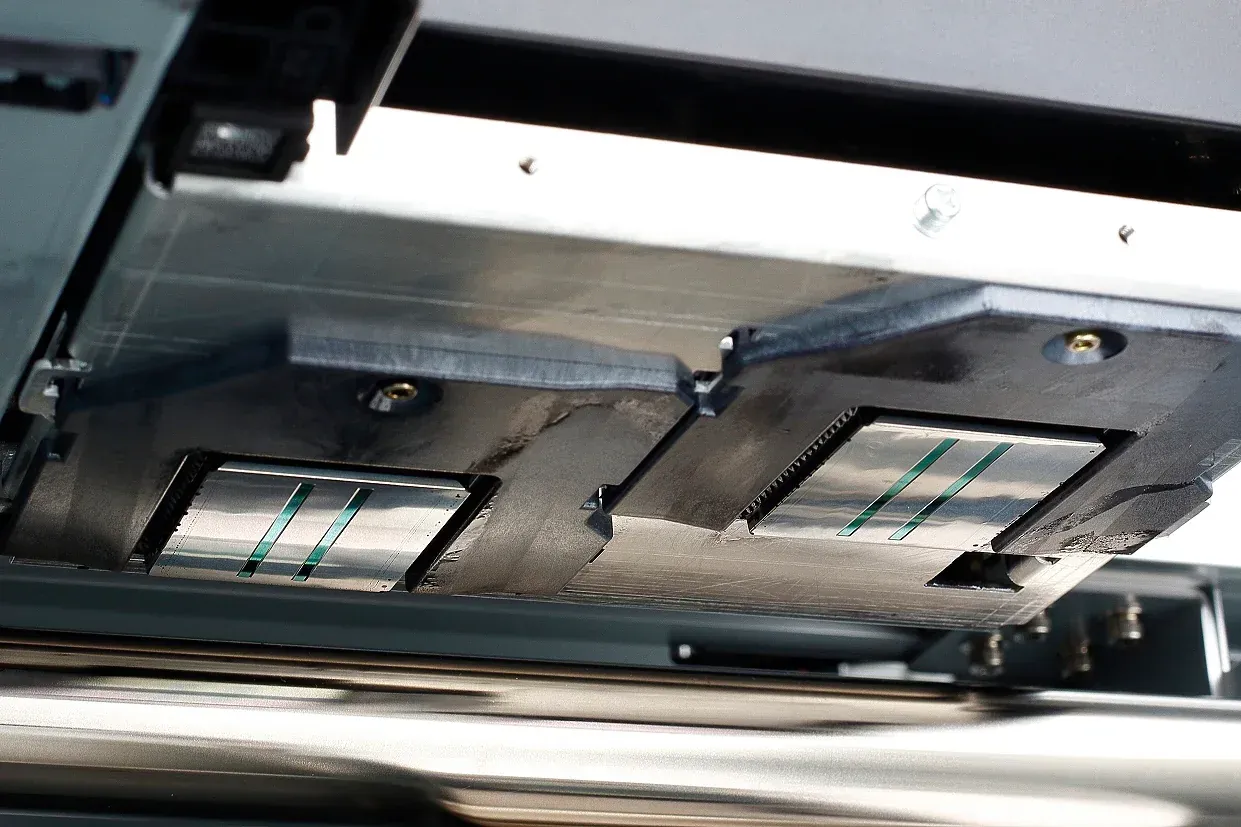

The XpertJet 1642WR Pro features extra-long AccuFine printheads with accurate dot placement, helping enable high print speeds without sacrificing quality — engineered for demanding, high-volume production environments.
Materials
DH21 dye-sublimation transfer ink helps achieve high-density colors even on thinner, lighter transfer papers. High performance jetting and color stability support prolonged print runs, with ink available in a CMYK configuration in 1,000ml or 2,200ml ink bags.
Features
- AccuFine printhead for accurate dot placement
- Automatically calibrate bi-directional alignments
- Automatic media feed adjustments for accurate advancement
- Print a barcode before roll removal and read it upon reload to track remaining media
- Allows printing to continue using active nozzles if clogging occurs, minimizing downtime
- Optional heavy-duty 220lb take-up system available
Specs
| Specification | Detail |
|---|---|
| Print Method | On-demand piezo drive system |

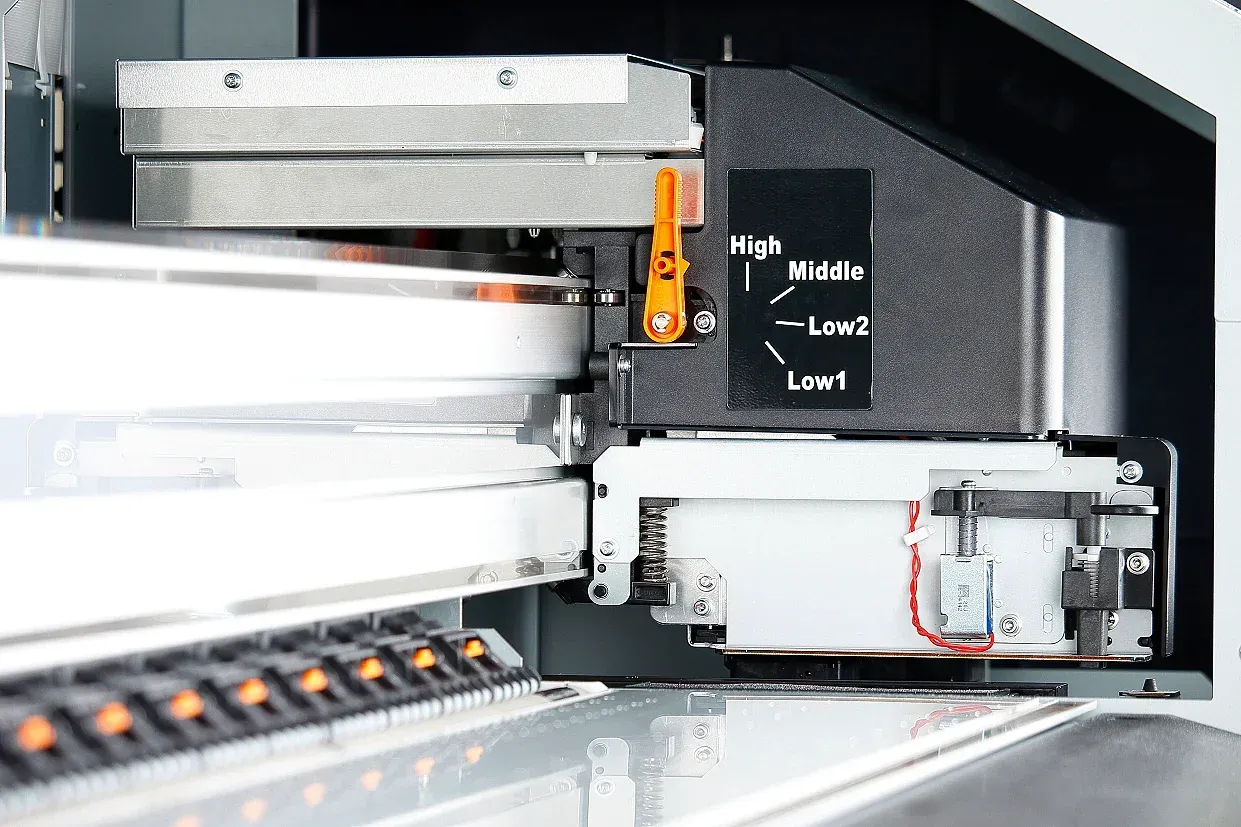

| Print Head Height | Four-level adjustment: Low 1: 1.5mm, Low 2: 2.0mm, Mid: 2.5mm, High: 4.0mm |
| Number of Print Heads | 2 staggered MUTOH AccuFine heads |
| Max Media Width | 64 in |
| Max Media Thickness | 0.04–1.0mm / 0.0015–0.039 in |
| Media Roll Measurements | Ø7.9" or less | 2 or 3 inch core | 66 lbs or less |
| Max Print Width | 63.6 in |
| Max Print Length | 4,921 ft |
| Ink Type | DH21 Dye Sublimation Ink |
| Ink Set | 4 colors (C, M, Y, K) |
| Ink Capacity | 1,000 ml | 2,200 ml ink bags |
| Print Resolution | Max 1200 dpi |
| Interface | Gb-Ethernet (1000BASE-T) |
| Power Requirements | AC 100–120V ±10% / AC 200–240V ±10% | Frequency 50/60Hz ±1Hz |
| Power Consumption | Operation: AC100–120V | AC200–240V, 180W or below; Sleep Mode: AC100–120V | AC200–240V, 30W or below |
| Printable Environment | Temperature: 68–89.6°F (20–32°C) | Humidity: 40–60%RH (non-condensing) |
| Dimensions (WxDxH) | 109 in x 35 in x 56 in (cover closed); 109 in x 35 in x 68 in (with ink bag cases) |
| Weight | Main body: 302 lbs | Stand: 70 lbs |
| RIP Software | Wasatch SoftRIP |
Applications
The XpertJet 1642WR Pro delivers high-quality graphics onto a wide range of materials, including trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms, and more.
-
Apparel
-
Home Decor
-
Soft Signage
-
Wall Coverings
